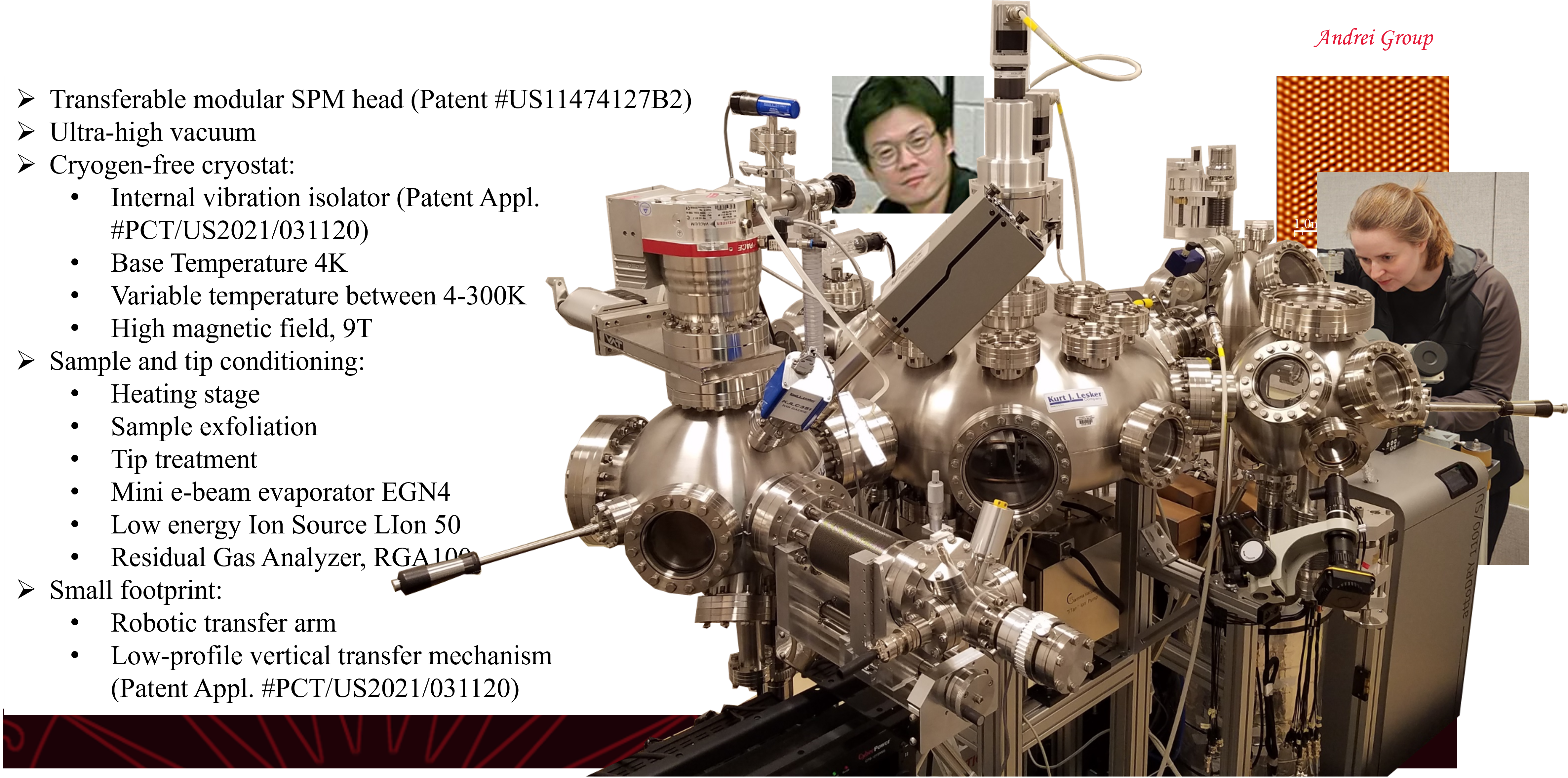

| Our
home built Ultra High Vacuum Low
Temperature- Cryogen-Free modular compact
STM operates at temperatures down to 4K
and magnetic fields up to 9 Tesla. It is
equipped with coarse XYZ
motors providing a scanning range of
several mm and with a fine motor for
zooming in to sub-atomic length scales.
The patented pluggable STM head can be
interchanged, without breaking vacuum,
between a room temperature station and the

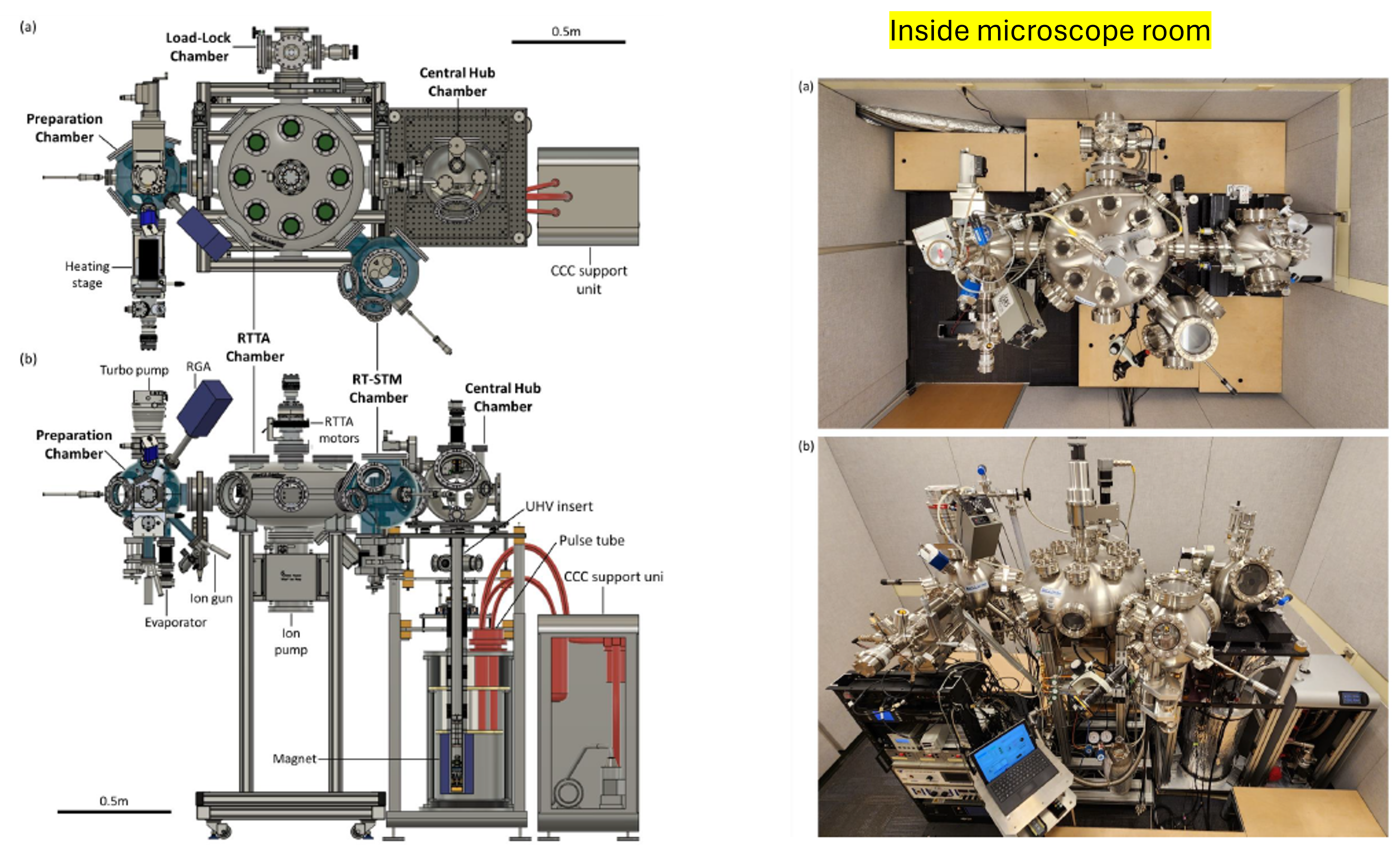

low temperature one. The unit is
equipped with a prep chamber for film
deposition, ion etching, tip conditioning,
and sample exfoliation all under the same
vacuum. |
||||
 Click image for
movie
|
||||
 |
||||
 |
||||

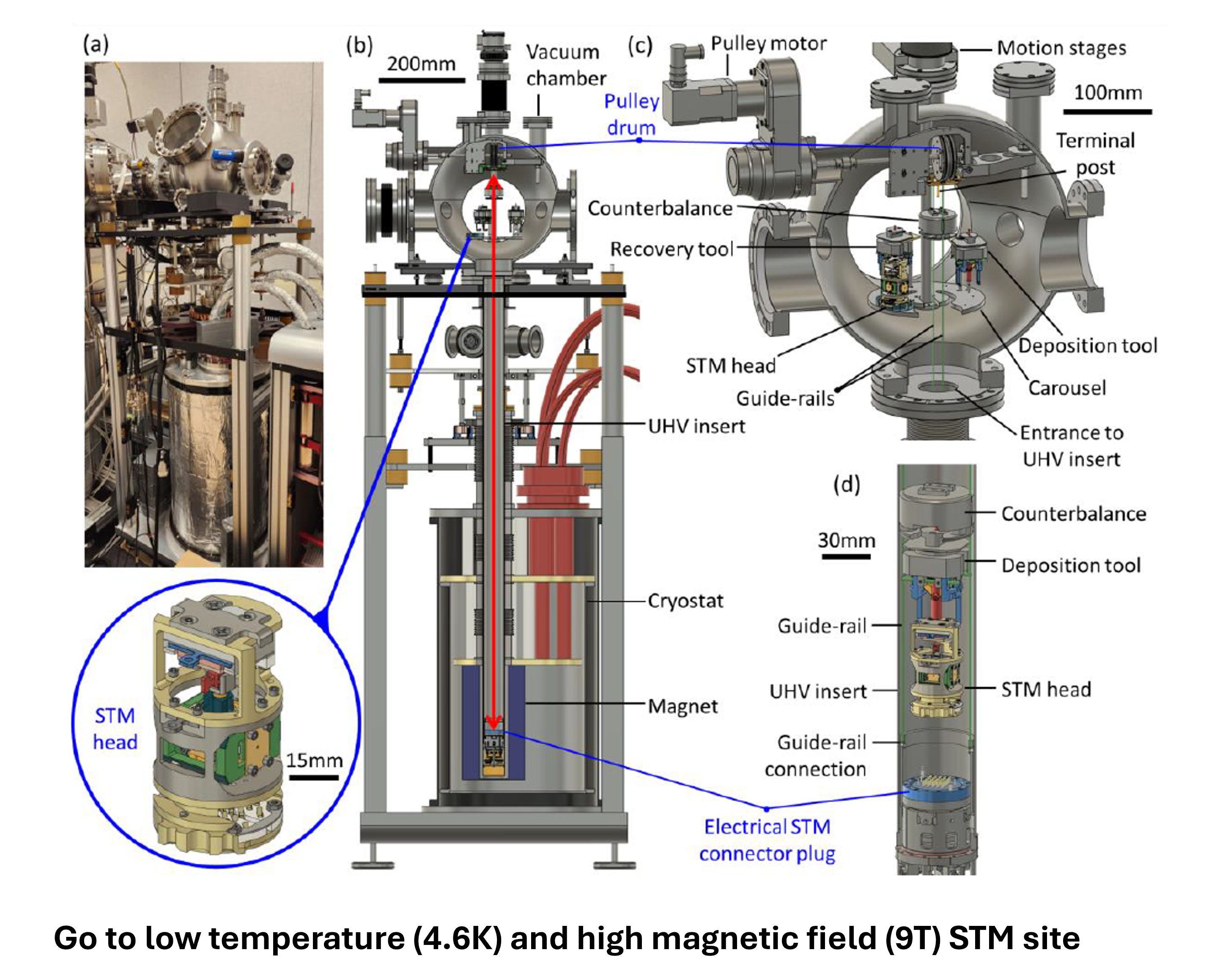

 Cryogen free Cryostat |
||||
 |
 Angela loading sample into the cryostat. |
 Guohong, Eva and Angela posing with the STM. |
||
