126Sn Run Aug. 2011

Modified KHS1; added about 0.4 mg/cm2 Grafo colloid
Target: (KHS1m) 1.0 C | 5.01 Gd | 1.1 Ta | 5.02 Cu | 5.6 Cu mg/cm2
ORNL set up: 4 Clover detectors at 3 cm + chamber radius from target.

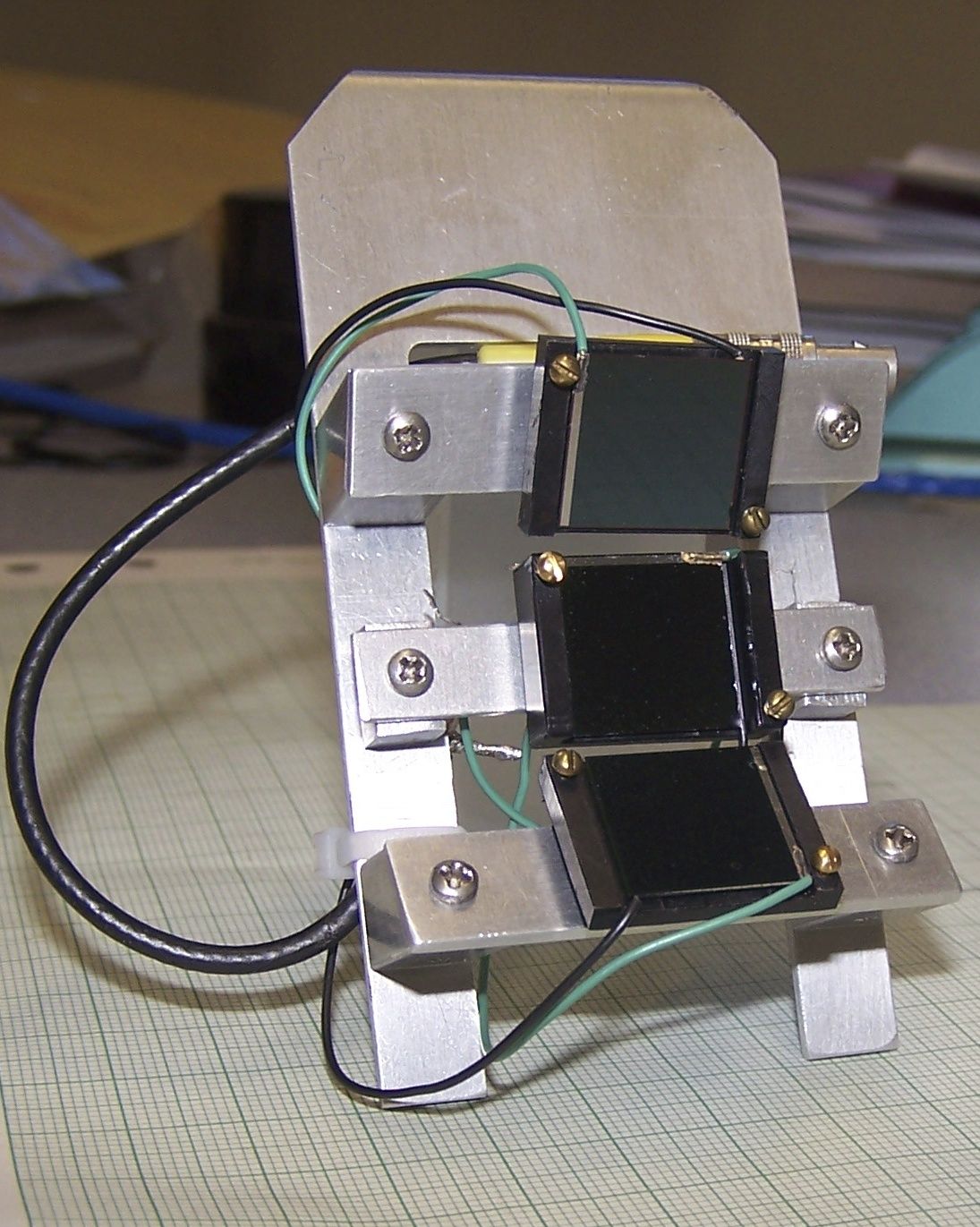

Particles detected in triple solar cell: size 15x15 mm each.
30 mm behind target, central detector covers an opening of ±14° outer detectors wired together, each covers 17 - 44°
Beam: 126Sr 378 MeV(Coulomb barrier = 461 MEV).
 [picture]

Run Summary
Run  Date  Start  Time  Outer Central Comment
Events  Part/sec  Events  Part/sec
1260004 15 17:37 26m 3 56.2 1 89.2 Precession 67°   1.evt
1260005 15 18:04 7h10m 919 39.9 603 63.0 Precession 67°
1260006 16 1:15 3h41m 912 33.2 697 35.4 Precession 67°
1260007 16 4:56 5h22m 1861 56.5 1223 87.5 Precession 67°
1260008 16 10:19 36m 197 60.7 147 106.0 Precession 67°
1260016 16 14:43 51m 211 67.0 170 85.7 Precession 67°
1260017 16 15:35 2h13m 109 82.3 76 82.3 Precession 67°
1260022 16 17:53 2h23m 5577 107.7 2736 107.7 Precession 67°
1260023 16 20:25 3h15m 9365 107.2 4892 107.2 Precession 67°
1260024 16 23:40 3h42m 17707 121.5 8815 123.5 Precession 67°
1260025 17 3:23 1h27m 11844 122.7 5665 124.5 Precession 67°
1260026 17 4:50 1h 3m 9488 121.9 4695 123.0 Precession 67°
1260027 17 5:53 1h30m 10106 113.7 5185 119.2 Precession 67°
1260028 17 7:24 1h52m 10215 109.4 5172 117.4 Precession 67°
1260029 17 9:16 1h 2m 1488 51.2 724 86.6 Precession 67°
1260030 18 17:14 35m 2121 44.0 1033 44.0 Precession 67°   2.evt, changed setup
1260031 18 17:50 5h06m 21804 144.3 10123 42.8 Precession 67°
1260032 18 22:57 5h10m 19026 139.5 8158 603.7 Precession 67°
1260033 19 4: 7 5h20m 20484 159.0 9267 284.9 Precession 67°
1260034 19 9:27 34m 1273 146.4 586 308.6 Precession 67°
1260035 19 10:01 5h06m 21474 161.9 9834 75.2 Precession 67°
1260036 19 15:11 4h37m 23873 187.4 11183 70.9 Precession 67°
1260037 19 19:48 1h20m 3818 141.9 1924 50.6 Precession 67°
1260038 19 22:06 25m 1282 81.0 653 46.1 Precession 67°   3.evt
1260039 19 22:31 5h00m 21764 83.5 10920 45.7 Precession 67°
1260040 20 3:32 5h17m 18897 87.8 9994 42.8 Precession 67°
1260041 20 8:49 5h03m 20304 90.3 10618 47.5 Precession 67°
1260042 20 13:53 4h53m 19746 103.0 10557 60.3 Precession 67°
1260043 20 18:47 4h55m 19003 96.5 10165 61.6 Precession 67°
1260044 20 23:42 5h22m 14074 62.5 9099 42.5 Precession 67°
1260045 21 5:05 5h06m 16970 71.5 9328 37.2 Precession 67°
1260046 21 10:51 4h44m 16717 80.4 8700 35.3 Precession 67°   4.evt
1260047 21 15:36 4h46m 15465 69.2 8274 35.3 Precession 67°
1260048 21 20:23 5h02m 12895 54.6 6766 32.0 Precession 67°
1260049 22 1:26 5h13m 11466 52.1 6007 30.4 Precession 67°
1260050 22 6:39 3h02m 5448 48.7 2891 27.8 Precession 67°
1260057 22 18:38 4h27m 6053 147.1 3190 10.3 Precession 67°   5.evt
1260058 22 23: 5 3h29m 11425 170.6 5912 20.3 Precession 67°
1260059 23 2:35 2h49m 15248 198.3 7913 26.5 Precession 67°
1260060 23 5:24 2h58m 15199 198.1 7993 25.2 Precession 67°

124Sn Run Aug. 2011

Short run before 126Sn,
while tandem was still sparking and had to be conditioned.
Beam: 124Sr 372 MeV(CB = 455 MEV).

Run Summary
Run  Date  Start  Time  Outer Central Comment
Events  Part/sec  Events  Part/sec
1240021 14 13:58 21m 11346 1586.5 18945 1003.7 Precession 67° warm
1240022 14 14:20 1h02m 20379 1683.1 11743 1161.1 Precession 67°
1240023 14 15:29 25m 104273 1812.9 62796 1011.5 Precession 67°
1240024 14 16:46 13m 909 1766.2 496 983.1 Precession 67°
1240025 14 17:05 59m 33359 1736.1 19604 964.7 Precession 67°
1240026 14 18:49 2h37m 35857 761.9 22226 474.3 Precession 67°
1240027 14 21:27 45m 18781 1389.1 11735 838.3 Precession 67°
124 14 14:00 5h22m 124653 ~1600 74530 ~1000 Precession 67° - sum of runs 22-27

Publication:PRC 86 (2012) 034319.

Gerfried Kumbartzki
