Low Tempearture High Magnetic Field Scanning Tunelling  Microscope

Low Tempearture Hi mLl

Our home built STM operates at temperatures down to 2K and magnetic fields up to 15 Tesla. It is equipped with coarse  XYZ motors  providing a scanning range of several cm and with a fine motor for zooming in to sub-atomic length scales. Electrical leads allow  measurements in the presence of externally applied currents and voltages.

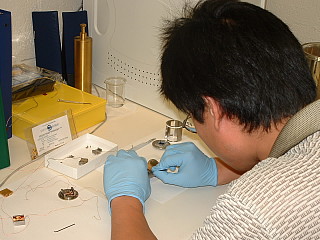

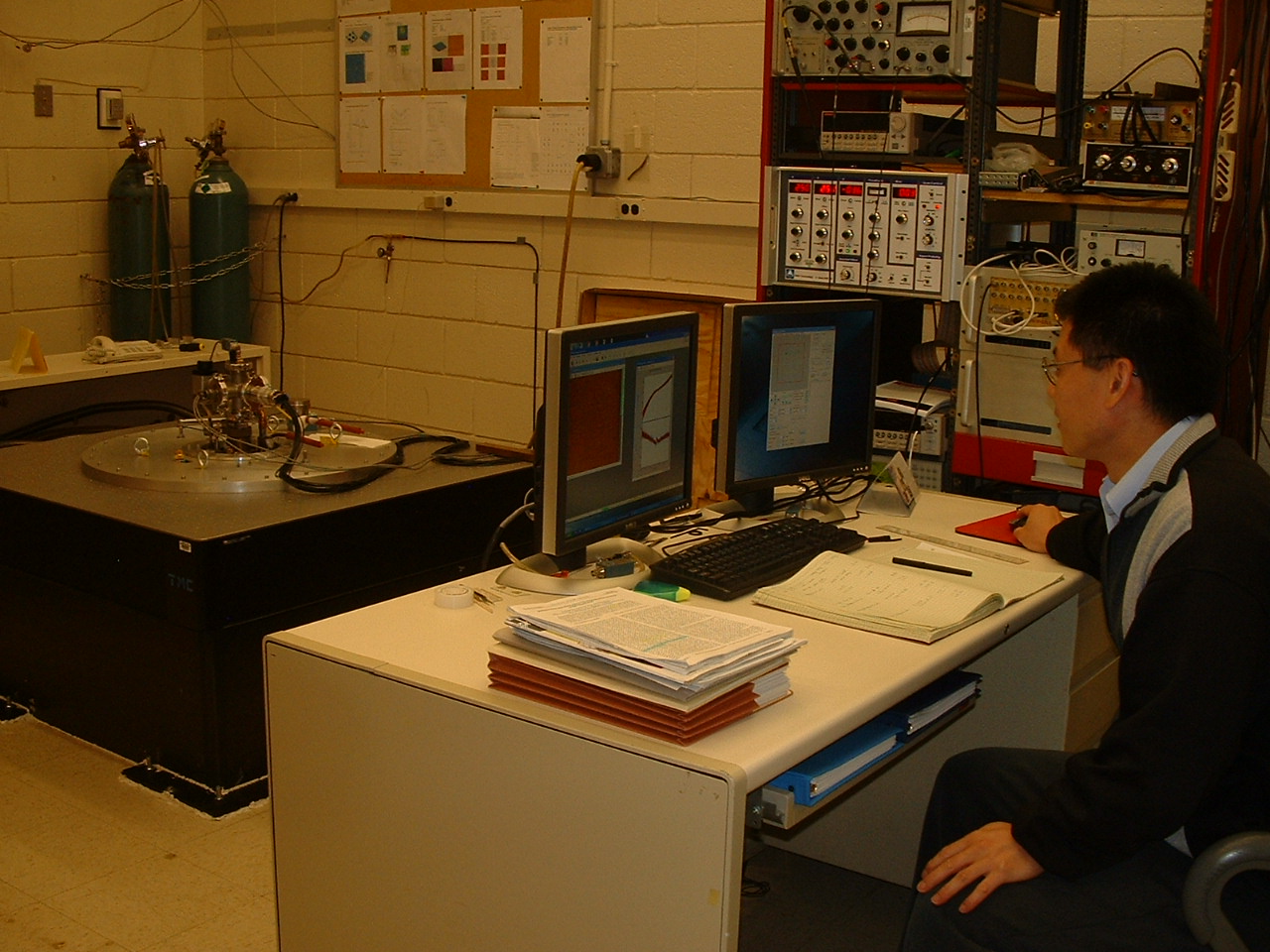

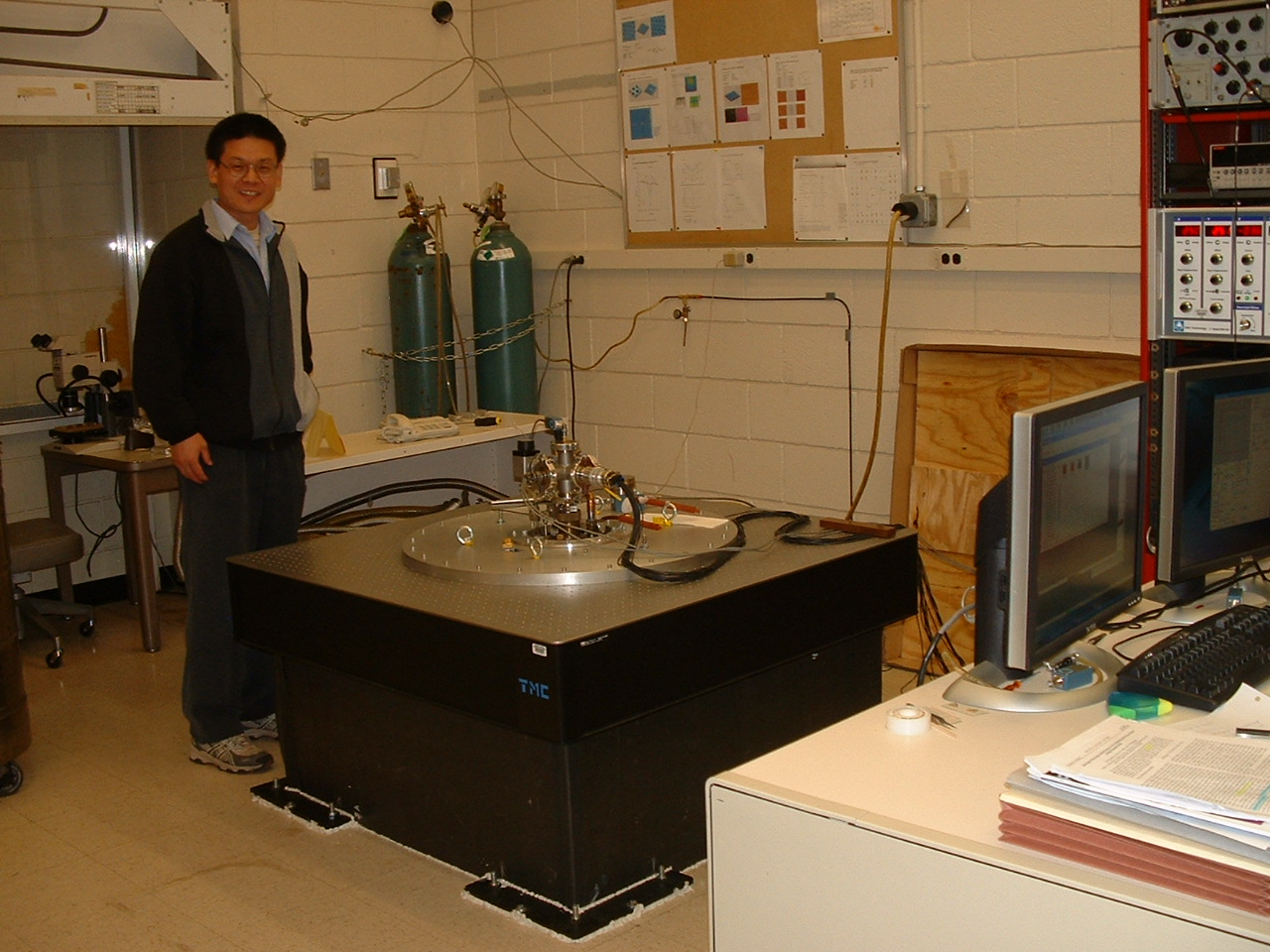

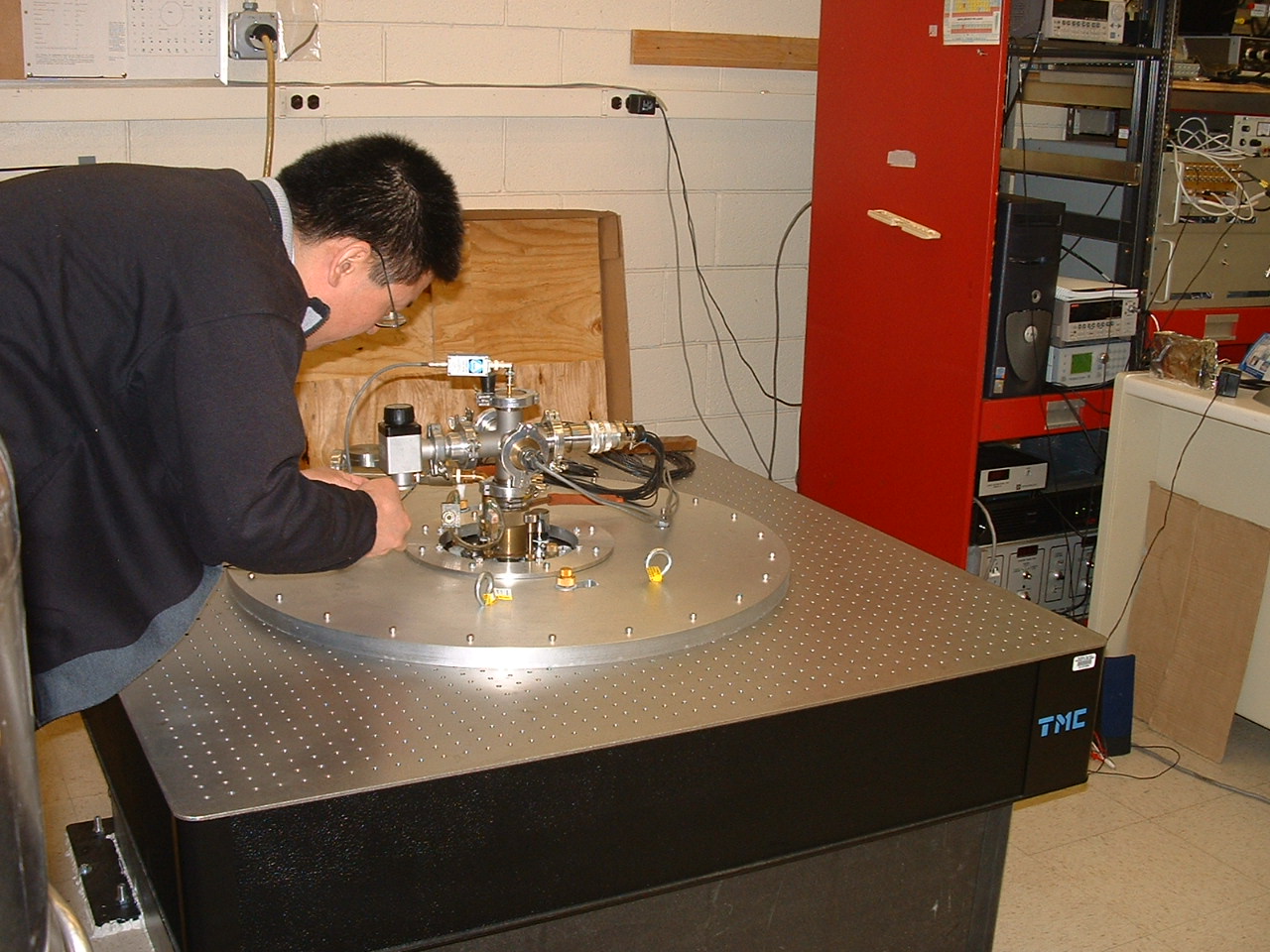

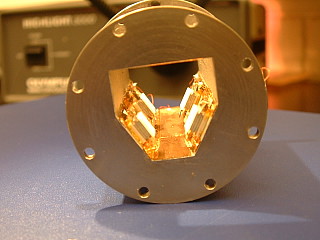

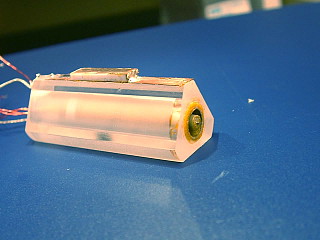

STM in operation Last minute preparations STM close-up
1 6 2
4 3   5

STM in  operaration
